Production information:
Voltage, electric current real-time sampling ;The large screen liquid crystal display ,a real time display group(8 grains) the battery electric current ,the voltage, the capacity ,theparameter examination ,the establishment direct-viewing ,the operation are simple ;Industrialization programming ,all operations according to hypothesis step automatic execution;
The system hardware stable is reliable ,each channel has the independence the constant flow and the hardware constant pressure source ;The data acquisition speed is quick, precisely catches graps the voltage, the electric currentchange detail; Applies in battery inthe and so on lithium polymer ,lithium ,nickel hydrogen ,nickel cadmium performance test and battery roduction process turning into elects with the capacity
minute.

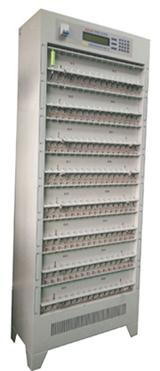

Model: BCS-2328
Input voltage: AC220V±10%/50z
Charge and discharge current: 0-2000mA±5mA
Charge and discharge voltage: 0.00-5.00V ±0.02V
Test Channel: 128、256、512
Long: 68.5cm
Width: 36.5cm
High: 174cm
Weight: 90kg
